"There are really only two practical methods of making a notebook screen readable outdoors: (a) crank up the brightness (measured in nits, which is display-industry slang for "candela per meter squared", or cd/m²) to the point where the light emitted by the screen is sufficiently greater than the ambient light reflected by the screen, or (b) treat the surface of the screen so it reflects much less light, which again allows the emitted light to exceed the reflected light."

There are other options such as transflective or reflective displays, but they are compromises at best, and the industry has moved away from them. As is, daylight-readability is achieved with optical coatings or a stronger backlight or both combined. Both approaches have pros and cons. Optical coatings add cost and can result in weird optical effects or discoloration. Strong backlights require a large battery (extra weight) or quickly drain a standard battery (inadequate battery life).

Though GETAC does not specifically mention optical coating, a degree of coating must be there as the image remains visible in direct sunlight. That, however, is only part of the story. While the P470 does not have the superbright 1,200 nit backlight used on the company's B300 and as of summer 2008 also on the V100, it does have a "sunlight readable quick button" that sets the backlight to maximum at the touch of a hardware button. Pushing the button doesn't boost the backlight beyond the maximum of the standard brightness range as it does on the B300, but it's very convenient to just push a button outside instead of having to mess with screen brightness settings.

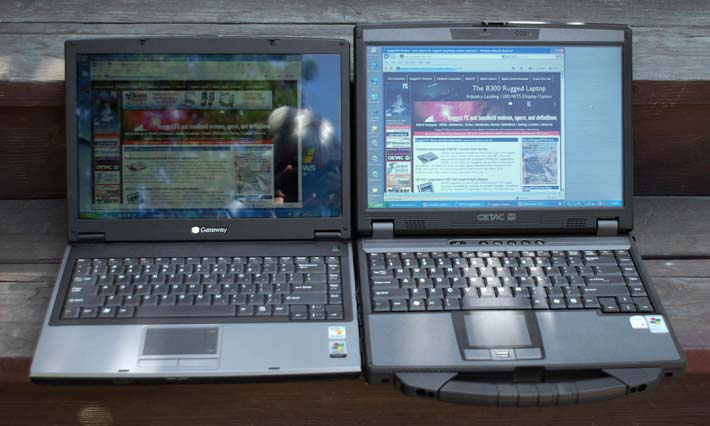

The two pictures below show the P470 (right) and a standard Gateway notebook in bright daylight in partial shade with the sun on the right side. The standard display remains quite readable, a testimony to how far run-of-the-mill computer displays have come, but mirror-like reflections on the glossy screen make it all but unusable. The GETAC P470, on the other hand, not only provides a strong, bright picture, but also one that is completely free of mirror reflections.

Below is a comparison in direct, bright sunlight with the computer displays facing the sun. Once again, while the standard glossy display of the comparison Gateway does better than expected, it is no match for the P470 in brightness and freedom from distracting reflections. Whereas the mirror reflections on the standard screen are strong enough to make it difficult to use the computer, the GETAC is completely free of reflections.

While GETAC usually favors fanless designs for sealing purposes, this simply wasn't an option for a machine with a full-power mobile Core 2 Duo processor that dissipates as much as 34 watts. This eliminated the need for the more than three feet of copper heat-piping used in the fanless B300. All it takes is a small length that transports heat from the processor to the fan's heatsink.

As you can see in the picture to the left, instead of several small covers, GETAC chose to use a single large cover to provide access to components. Remove eights small Philips head screws to get to the two memory card slots, the WiFi and expansion slots, and to the processor and fan itself. There is no rubber O-ring for sealing as the P470 wasn't designed to be watertight (there are also ventilation slots over where the two memory slots rae). The outer surface of the bottom plate has an elegant warm-gray powdercoat finish.

The 53.3 watt-hour (11.1 Volts, 4,800mAH) battery is fairly small for such a powerful machine as P470 users are more likely to remain within proximity of a power outlet than those using a fully-rugged machine. GETAC does offer an optional more powerful battery that provides around four hours of battery life between charges. The standard battery is good for 2-1/2 or so. There's also a special media bay battery pack that can extend battery life if there is no need for the optical drive that usually occupies the bay.

The disk drive sits in its own plastic subframe with a metal top. The disk is meticulously shock-mounted in strips of neoprene and foam rubber. The caddy is externally accessible upon removing a couple of screws and operating a latch. The disk in our tester was a speedy 2.5-inch 5400rpm 120GB Fujitsu MHW2120BH with a SATA-150 interface. The drive is externally accessible upon removing a couple of Philips screws.

The P470 is a well-connected machine. The pictures below right show the left and the right side both with the protective plastic port covers open.

On the left side are the Media Bay and the shock-mounted hard disk caddy. The Media Bay can contain a DVD combo drive, a DVD dual layer writer, an optional second battery, an optional second hard drive, or it can be used for a customized I/O port. The left side also contains two of the unit's three USB 2.0 ports.

On the right side you find, from left to right, the power jack, microphone and headphone jacks, a lever to turn wireless on and off, an RJ11 modem jack, a RJ45 gigabit LAN connector, the third USB 2.0 port, the multi-card reader, a mini-FireWire jack, and two expansion card slots, one for a PC Card Type II and one for an ExpressCard. The protective doors are made of hard plastic. They are screwed onto the body of the computer so they can easily be replaced should they break. Note that those covers are meant to provide physical protection rather than a watertight seal.

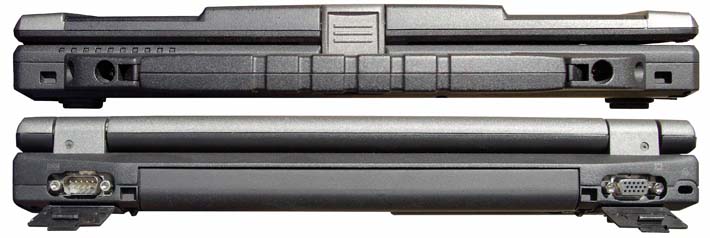

Most of the backside of the computer is taken up by the battery that slides in and is securely held in place by two levers. To the left and right of the battery are a 9-pin serial ports and a 25-pin video port, both with protective covers. On the right side is a Kensington lock slot that can provide extra physical security.

The front of the unit does not have any connectors or ports. There wouldn't be room for anything else as most of the front is taken up the large and very useful magnesium handle that is screwed onto the system side of the computer. There are, however, no fewer than ten indicator lights built into the right side of the handle base. They show the status of power, battery, hard disk, optical drive, num lock, caps lock, power savings ode, WiFi, Bluetooth and wide area wireless.

The P470's 88-key keyboard is full-scale. It has black keys with large and very legible white labels. Blue letters and symbols indicate function key combos. The keyboard is sealed. There is no keyboard illumination.

Below the keyboard is touchpad and two mouse buttons. Between the mouse buttons is a fingerprint reader that is used to provide extra security.

As far as expansion goes, there are the aforementioned two slots. The PC Card Type II slot can be used to a wide variety of peripheral cards and adapters. The ExpressCard slot can accommodate both 34mm and 54mm format cards. The 4-in-1 multi card reader accepts MMC/SD cards as well as Memory Stick and Memory Stick Pro. CF or other card formats can all be read using a PC Card slot via adapters.

Security

Like most mobile hardware these days, the GETAC P470 offers various levels of hardware and software security to prevent unauthorized access as well as theft.

The Protector Suite QL from UPEK Software Products handles Fingerprint scanning. Initial setup enrolls any number of fingerprints to the hard disk. The system then sets up an enrollment record that combines the Windows user name, password, fingerprint and an automatically generated security key that cannot be reconstructed. To enroll, you enter your user name and password, then select which finger(s) you want to use, then have the fingerprint scanner scan your finger(s) three times. The fingerprint is now registered and locked to your user name and password. You can do a swipe to bring up the security control center from where you can fine-tune security.

As part of its security, the GETAC P470 uses Trusted Platform Module (TPM) 1.2 hardware to create and manage computer-generated digital certificates. Combined with software, these certificates can be used to:

• Send and received secure email,
• Set up the browser for client identification,
• Sign Word macros,
• Encrypt individual files or entire folders, and
• Create secure network connections.

To use TPM, you have to enable TPM support in the BIOS and then configure the system with the UPEK Protector Suite.

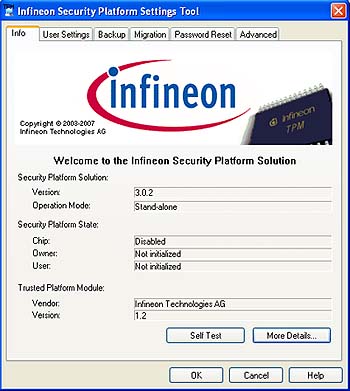

To handle all this, the P470 comes with the Infineon Security Platform Settings Tool that lets you set passwords, configure secure email and folder encryption, manage security platform certificates, do security-related backups, migrate security credentials, determine security policies and so on. All of this can get pretty involved. Some users may never implement TPM or even passwords, whereas others may be set up in accordance with their company's IT security procedures, or they may configure an individual system for maximum security.

Over all this, don't forget physical security and get a Kensington locking cable to use with the Kensington slot on the backside of the unit. It is inexpensive insurance against theft.

Touchscreen

Our P470 came with the optional resistive touch screen that can be operated either with a plastic stylus or with a finger. The resistive touch panel controller communicates with the processor via serial connection (and not USB as on the GETAC B300) but it is still very fast. A special Touchkit control panel handles adjustment and optimization for accurate touch performance and ease of use. The panel is quite elaborate.

• Setting lets you set linearization either to nine or 25 points, with 25 points offering maximum accuracy. You can also set double click time and area, beeps, auto right click, cursor stabilization, and five different mouse modes (like click on touch, click on release and so on) according to personal preference. I found it particularly nice that I could set the panel so a right mouseclick worked like with an active digitizer: tap and hold. A small mouse icon always shows whether the left or right mousebutton is currently selected.

  If you intend to use the computer primarily with finger touch, you can set it so that the driver stops reporting points when movement is within a pre-defined range. This way the cursor will not jitter around when the same point is touched again or when you move a pen within a small area.

• Hardware makes the system read the touch screen hardware parameters. After it's done, you can then change sensitivity and delay time.
• Edge Compensation can be quite valuable. With touch screens and digitizers it's often difficult to touch or select items at the edge of the panel, and especially so when the LCD display runs all the way to the kind of thick protective bezel most rugged slate have. The P470 touch panel allows you to precisely define edge compensation for all four sides, i.e., set it so the cursor thinks the edge is either farther away or closer in. Precise configuration can make for optimal usability and responsiveness in touch applications.
• Display lets you map the touch screen in various ways. You can enable multiple displays and you can also map the touch screen to only part of the display. There may be applications where it comes in handy to have only the bottom part respond to touch, and the P470 lets you do that. You can even create a customized area anywhere on the display and set it so only that area responds to touch. This is ideal for custom software applications.

Ruggedness

The GETAC P470 is what we'd consider a "business-rugged" computer capable of absorbing a degree of rough handling and demanding environmental conditions. The magnesium-alloy housing is very tough and sturdy. There aren't any rubber bumpers that would add extra protection but also bulk. As is, the solid construction of the machine, the excellent shock protection of the hard disk, and the shock-mounting of other sensitive components combine to let the machine survive drops from 2-1/2 feet.

As for environmental specs, the P470 has an operating temperature range of 32 to 113 degrees Fahrenheit. According to GETAC, humidity, thermal shock, vibration, shock, and altitude were all tested according to methods mandated in MIL-STD-810F and IEC 68-2-xx. The machine also fulfills ESD compliance with IEC 10000-4-2, Level 4.

GETAC also lists compliance with a variety of governing standards and regulations in various markets. These can be difficult to summarize in a review and they also vary depending on markets. Inquire with GETAC.

The machine, like most of the competition in this class, does not have an IP rating but is considered "water and dust resistant." Given the spill-proof keyboard and the protective covers for all ports, we're sure the P470 can survive coffee or soda spills and even a bit of rain.

Bottom line

The GETAC P470 is a compact and very solid notebook computer that combines commercial notebook performance and features with an extra degree of protection and ruggedness. It is an elegant, well-executed design with a nicely finished magnesium-alloy case that's pleasing to the eye and better able to withstand an occasional bump and spill than standard notebooks. In fact, it can survive a 2-1/2 feet drop. The handy, ergonomically designed machine weighs between six and seven pounds.

Unlike more extreme vertical market machines, the GETAC P470 does not compromise performance. Its powerful 2.0GHz Intel Core 2 Duo T7200 processor provides excellent speed and responsiveness. You also get plenty of onboard ports and connectivity as well as a fast and generously sized 160GB SATA disk and a flexible media bay. There is plenty of onboard security, including a fingerprint scanner, and an integrated 1.3 megapixel camera allows video conferencing.

In terms of wireless communications, there's the usual WiFi via an Intel PRO/Wireless 3945ABG module, and also optional Bluetooth, GPS, and a variety of data 3G networks: EV-DO, GSM/GPRS/EDGE, UMTS, WCDMA, HSDPA.

The P470 comes with a very bright 14.1-inch display that uses the "wide" 1280 x 800 pixel format with a 16:10 aspect ratio. In normal use it's a standard transmissive LCD with some coating that provides a degree of outdoor viewability and virtually no distracting reflections. A special hardware button turns the backlight to full power -- a handy, and user-friendly solution.

Overall, the GETAC P470 is a very intelligently designed semi-rugged machine that works like a commercial notebook but is more immune to spills and drops. Pricing starts at US$2,200; a fully equipped machine with sunlight readable touchscreen, a broadband wireless module, and a few other desirable options is in the US$3,500 range. -- Conrad H. Blickenstorfer

GETAC P470 Specs:

Type	Semi-rugged notebook
Processor	Intel Core 2 Duo T7200 with 4MB L2 cache (TDP 35 watts, 1.0375-1.3 Volts)
CPU speed	2.0 GHz, 667 MHz FSB
Graphics	Intel 965GM Express
Display Chipset	Intel 965GM, 128MB shared memory
OS	Windows XP Professional SP3 (Standard with Vista Business)
Memory	512MB/4,096MB PC2 533/667 MHz
Display	14.1-inch/1280x800 or 1440x900 pixel transmissive TFT with sunlight-readable and touch options
Digitizer	Touch screen (opt.)
Keyboard	Integrated, full-scale, spill-proof
Storage	shock-mounted 2.5-inch SATA 80 to 250GB
Expansion slots	1 PC Card Type II, 1 Express Card 34/54mm, 4-in-1 card reader (MMC, SD, MS, MS-PRO)
Housing	Magnesium alloy, sealed ports
Size	13.25 x 10.25 (w/o handle) x 1.9
Weight	6.6 lbs. with handle
Operating temperature	32 to 113 Fahrenheit
Ingress protection	unknown
Drop	2.5 feet
Vibration/shock/other	MIL-STD-810F 507.4 (humidity), 500.4 (altitude), 516.5 (shock), 514.5 (vibration); ESD
Power	Li-Ion (11.1V, 4,800mAh; 53.3 watt-hours), optional media bay battery (9-cell)
Interface	3 USB 2.0, RJ11, gigabit RJ45, Serial, dock, mini 1394a, audio in/out, video, 1.3mp camera, fingerprint scanner
Wireless options	Intel PRO/Wireless 3945ABG; optional Bluetooth 2.0 + EDR, EV-DO, GSM/GPRS/EDGE, UMTS, WCDMA, HSDPA, Circomm GPS
Price	starting at US$2,200; fully equipped US$3,500-4,000.
Contact	GETAC www.GETAC.com

(copyright 2008 RuggedPCReview.com)
