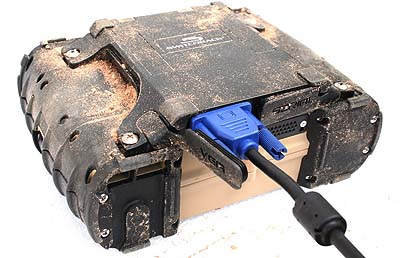

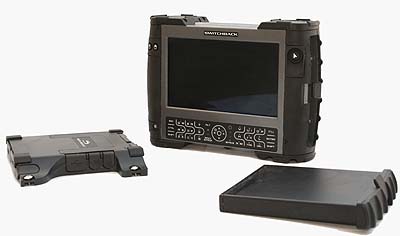

RMT can create custom modules for specific applications and also offers the "FlexPack" BackPack, a pre-engineered circuit board assembly that can quickly be adapted to support just about any external device. BackPack modules have an o-ring gasket to seal against the backside of the computer and are firmly held in place via four Philips screws. The computer runs without a BackPack, and BackPacks can be replaced as needed by the user. The BackPack modules have a tough plastic shell and protective rubber bumpers on all four corners. The packs are color-coordinated with the main SwitchBack units and nicely fit into the overall design.

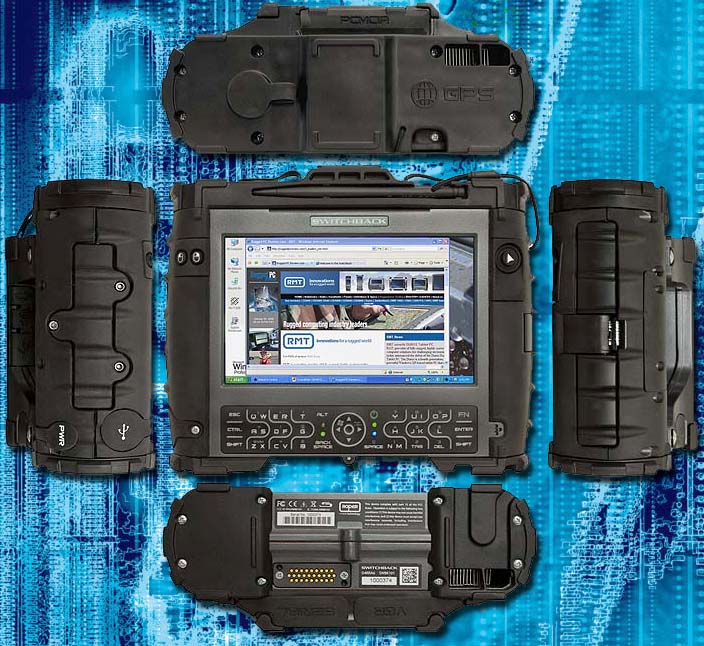

The pictures below show the front and all four sides of the SwitchBack:

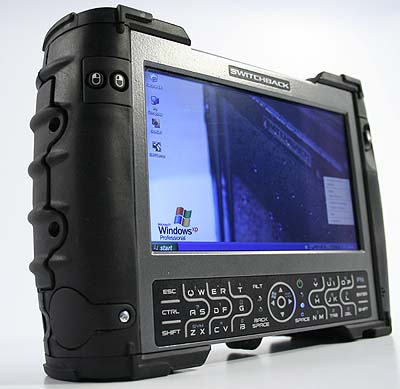

The front shows the unit's LCD display that measures 5.6 inches diagonally. It is a wide-format TFT display with a 16:9 aspect ratio and 1024 x 600 WSVGA resolution. This translates into a razor-sharp image with about 212 pixels per inch. That is significantly sharper than even the Apple iPhone's display, which has a resolution of about 162 pixels per inch. Above the display is a garage for the computer's 4-inch plastic stylus that's tethered to the computer with a 10-inch string. On the upper left are left and right mouse buttons, on the upper right a pointing device. Below the display is the SwitchBack's somewhat unique keyboard whose QWERTY layout is split in two by a centrally located navigation diamond.

The left side shows the hard drive cover secured by three Allen screws as well as the DC power input and a USB 2.0 port, both with the protected rubber plugs in place. The plugs are screwed onto the computer and can easily be replaced. The hard drive in our review unit was an 80GB Toshiba 1.8-inch MK8009GAH unit spinning at 4,200 rpm.

The right side shows the hot-swappable Li-Polymer battery. It is a 12.6V/3,850mAH unit that's integrated into the overall design and provides 48.5 watt-hours. A spring-loaded clasp holds the battery pack in place.

The bottom shows the surface-mount docking station connector and the heat exchanger vent.

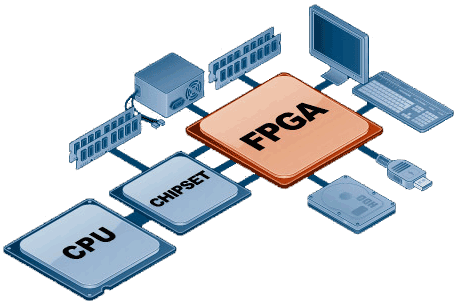

What is the Xilinx Virtex 5 FPGA? It is a platform that is optimized for high-performance embedded processing, digital signal processing, and high-speed connectivity, and thus a system integrator's dream. FPGA stands for Field Programmable Gate Array and refers to a class of programmable, reconfigurable chips. The FPGA can be programmed as a circuit board, a virtual CPU, a storage device, or as a combination of all three. The programming itself is not permanent; it can be redone even in the field. What that means is that often-used software processes can be coded to become part of the FPGA. Xilinx, the company that makes the FPGAs, also creates so called "intellectual property cores," processing blocks that can be plugged into a system and used for certain purposes. The SwitchBack still has a conventional CPU and chipset, but they assume the roles of peripherals to the FPGA. The block diagram to the right shows how it all fits together (source: RMT website).

How does one harness the inherent power of an FPGA? Well, for example, the SwitchBack can perform true multi-tasking by not only sharing processing with the conventional Intel processor, but also by running multiple processes independently from one another within its own logic (the FPGA has its own hardware processor core. The system is also configured to free conventional CPU resources by delegating low-level functions to the FPGA where they are processed in parallel. The SwitchBack, for example, has hard-coded DSP "slices" that allow totally independent signal processing for converting video streams, process complex algorithms, or handle multiple calculations simultaneously. The FPGA can also be used to handle mission critical data or equipment control that would continue even if the conventional processor were to halt.

The application potential of the Xilinx Virtex 5 Field Programmable Gate Array is theoretically unlimited. Systems can be configured to match very specific needs such as custom logic interfaces, network security, cryptography, medical imaging, real time conversions, etc. To take advantage of this approach, the SwitchBack is set up to offload some system processes to the FPGA, but the real payoff comes through custom processes configured for specific applications. In a sense, the approach is not unlike using a System on Module in conjunction with a configurable carrier or solution board. NASA used Xilinx FPGAs in critical applications for both the lander and rover vehicles of the Mars Exploration missions. Many other companies have used FPGAs in applications from mobile handsets to Formula 1 race cars to video switchers, security cameras, automotive telematics and much more. Imagine what an FPGA-based super-compact rugged mobile system can be used for!

How do you do it? That is not entirely trivial. Xilinx offers numerous FPGA programming courses through its network of authorized training providers. And RMT has a quick-and-easy programming tool that creates flash images from the compiled bitstreams generated by Xilinx tools. RMT also sells a special firmware development kit for customers who wish to merge just about any kind of hardware with the SwitchBack.

Why did the designers of the SwitchBack choose this interesting, but in the rugged industry largely unknown, approach? Because the project was originally conceived with the intent to compete in the defense market where being able to plug into vehicles, radios and numerous different standards and devices was essential. A whole community of VHDL coders considers this approach the way to go, but things are entirely more complex than just loading a custom app. VHDL stands for Very-High-Speed Integrated Circuit Hardware Description Language and was developed for the US Department of Defense.

What it boils down to is that the SwitchBack has sort of a dual Clark Kent/Superman personality. It can function as a standard PC thanks to its Intel processor, but it can also tackle complex, sophisticated tasks at record speed thanks to its FPGA technology.

That said, we still ran our standard benchmarking suite, Passmark Software's PerformanceTest 6.1, to examine the SwitchBack's performance in "Clark Kent" mode. Passmark's benchmark suite runs about 30 tests covering CPU, 2D graphics, 3D graphics, memory, and disk and then computes scores for each category and an overall PassMark score. For comparison, we're listing the numbers of two other systems, RMT's own Celeron-equipped Duros and the Getac E100 tablet with its super-efficient 800MHz Intel A110 processor. The results were as follows:

PERFORMANCE COMPARISON	RMT Duros	RMT SwitchBack	Getac E100
Processor	1.0GHz Celeron M 373	1.0GHz Celeron M	800MHz Intel A110
Thermal Design Power (TDP)	5.0 watts	5.0 watts	3.0 watts
CPU Mark	249.5	236.3	207.2
2D Graphics Mark	169.1	142.4	174.7
Memory Mark	189.6	179.7	155.5
Disk Mark	189.4	163.8	200.2
3D Graphics Mark	54.5	64.7	63.1
Overall PassMark	169.7	156.6	148.3

That brings up some design challenges. While it is relatively easy to thumbtype on a Blackberry, a UMPC is much wider and so the designers of the SwitchBack came up with a novel approach that splits a waterproof membrane keyboard into a left and a right half, with the navigation keys in the center. The layout itself is standard QWERTY, but operation borrows from cellphone texting where tapping numeric keypad keys a number of times will generate the desired letter. On the SwitchBack, 20 of the 26 letters of the alphabet are arranged in pairs and share a key, whereas the remaining six have their own key. So if you want to type a "Q" you tap once; for the neighboring "W" you tap the same key twice. The overall look and design of the keyboard reminds of the RAZR cellphone which, of course, was and is a huge hit.

The pointing device, likewise, required a different approach. You need to apply firm and steady pressure to the small black rubber pointer. Increased pressure accelerates the cursor, less pressure makes it go slow. This works quite well, but you need to get used to it.

The display is a pleasure to use. Its incredible sharpness conveys a sense of crispness and precision, yet text and icons are not so small as to become difficult to read. The horizontal viewing angle is very wide. The vertical one much less so and there is considerable color shift. The backlight can be set manually or you can leave it in automatic mode where it is adjusted through a light sensor by the FPGA.

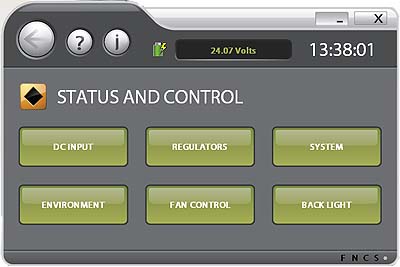

The Status and Control Panel

The RMT SwitchBack comes with a Status and Control panel that has six tabs on its main window together with input voltage and the status of Function, Num-Lock, Caps-Lock and Shift-Lock. The available screens are as follows:

• DC Input: Shows where the SwitchBack gets its power from: DC, the main battery, or the backup battery. It also shows the remaining charge in the main and backup batteries. The DC Input window can be toggled with the Regulators window that shows the status of eight regulated voltages in the system.

• Regulators: Shows the status of eight regulated voltages in the system, and can be toggled with the DC Input window.

• System: Shows the versions of internal hardware and software. From here you can also perform system updates and turn power on and off to the GPS, WiFi and Bluetooth components.

• Environment: In this mode you can see the x, y, and z values reported by the SwitchBack's accelerometers. The screen also shows whether the unit has experienced a free fall or excessive motion.

• Fan Control: This screen shows the temperature readouts from four sensors in the system. It also shows CPU clock speed in % (at high temperatures the CPU may slow itself down). There is also a degree of manual control over fan speed.
• Back Light: Shows backlight brightness and lets you toggle brightness control between manual and automatic.

Every screen of the Status and Control Panel utility, which is based on the unit's FPGA architecture, is described in detail in a browser-based manual.

Ruggedness

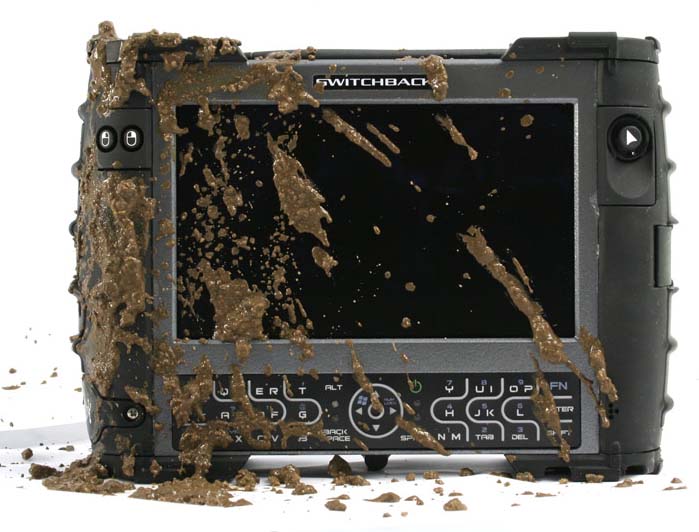

The RMT SwitchBack is a fully rugged machine with a very tough magnesium alloy housing, extensive external elastomer protection, and shock-mounted electronics.

The SwitchBack was designed to meet or exceed MIL-STD-810F environmental specs for operating temperature, temperature shock, vibration, shock, and humidity. The specs differ somewhat between hard disk-based versions and machines with solid state disks. With rotating media, the operating temperature range is 32 to 122 degrees Fahrenheit and the machine can survive drops from three feet to concrete. With a solid state disk, the operating temperature range widens considerably to -4 to 131 degrees Fahrenheit, and the maximum operation drop also grows to four feet.

Sealing is at the IP67 level, with the "6" standing for complete protection against dust and the "7" for protection against immersion into water up to a depth of 3.3 feet for 30 minutes.

RMT also lists a variety of regulatory approvals that may or may not be relevant to specific customers, including FCC Part 15, Subpart B; CE Mark; and Industry Canada.

The RMT SwitchBack rugged Ultra-Mobile PC: bottom line

The RMT SwitchBack is an exceedingly interesting and superbly flexible machine that can fill a large number of potential requirements. As a fully rugged Ultra-Mobile PC, the compact SwitchBack provides substantial computing power even under environmentally demanding conditions. And it does so with a minuscule footprint of 7.4 x 5.9 inches and weighing just over three pounds.

Should field operation require more than a single USB port, RMT's modular "BackPack" system adds almost unlimited connectivity and expansion. And it's not just ports; BackPacks can also provide camera, mag-stripe reader, laser or RFID scanner, biometrics, high definition video, etc., or custom-designed functionality.

The unit's 5.6-inch sunlight viewable display is bright and incredibly sharp with 1024 x 600 pixel WSVGA resolution. It has a passive touch screen. There is also a navigation diamond and a pointing device. A unique QWERTY keyboard combines conventional and numeric keypad functionality.

The SwitchBack is a very rugged unit that is totally sealed against dust and can even handle immersion in water. It also has a very wide operating temperature range, can handle drops, shock and vibration. Note that environmental specs vary between hard disk and solid state disk units.

What truly sets the SwitchBack apart is its unique processor architecture where a standard Intel processor is a peripheral to a Xilinx Virtex 5 FPGA platform that, with special programming, can perform complex, sophisticated tasks at record speed. Those who harness this power will find in the SwitchBack a compact, rugged machine of unparalleled flexibility.

-- Conrad H. Blickenstorfer

RMT SwitchBack Specs:

Type	Rugged UltraMobile PC
Processor	1GHz Intel Celeron M with 533 MHz FSB; Xilinx Virtex 5 LX30T FPGA
Display Chipset	Intel 915GM
OS	Windows XP Professional (Windows Vista and Linux optional)
Memory	512/2048MB DDR II DRAM
Display	5.6-inch/1024 x 600 pixel WSVGA; sunlight viewable
Digitizer	passive touch screen
Keyboard	Backlit condensed QWERTY keyboard
Storage	80-120GB 1.8-ich hard disk; up to 32GB solid state disk
Expansion slots	With standard BackPack: 1 PC Card Type II
Housing	Magnesium alloy housing with elastomer grips and bumpers
Size (inches)	7.4 x 5.9 x 2.2 (system unit)
Weight	3.0 lbs.
Operating temperature	With hard disk: 32 to 122 degrees F; with solid state disk: -4 to 131 degrees Fahrenheit
Ingress protection	Base IP67, standard BackPack IP65
Drop	Hard disk units: 3-foot drop to concrete; solid state disk: 4-foot drop to concrete
Power	Hot-swappable Li-Polymer 12.6V/3,850mAH, 48.5 watt-hours ("2-4 hrs"), 9-28 VDC
Interface	On system: 1 USB 2.0, power, ultra-wide backpack port; Standard BackPack: 1 additional USB 2.0, microphone, audio out, video, serial
Wireless options	802.11b/g, Bluetooth 2.0, civilian GPS; optional GSM, GPRS, EDGE, UMTS, WCDMA, GPS
Price	depends on configuration
Contact	Black Diamond Advanced Technology

(copyright 2008 RuggedPCReview.com)
